Show the code
pacman::p_load(scales, viridis, lubridate, ggthemes, gridExtra, readxl, knitr, data.table, tidyverse)Hands-on Exercise 6: Visualising and Analysing Time-oriented Data
1 Learning Outcome
By the end of this hands-on exercise I will create the followings data visualisation by using R packages:
plotting a calender heatmap by using ggplot2 functions,
plotting a cycle plot by using ggplot2 function,
plotting a horizon chart
2 Getting Started
To check, install and launch the following R packages:
3 Plotting Calendar Heatmap
By the end of this section, I will:
- plot a calender heatmap by using ggplot2 functions and extension,
- to write function using R programming,
- to derive specific date and time related field by using base R and lubridate packages
- to perform data preparation task by using tidyr and dplyr packages.
3.1 The Data
For the purpose of this hands-on exercise, eventlog.csv file will be used. This data file consists of 199,999 rows of time-series cyber attack records by country.
3.2 Importing the data
To import eventlog.csv file into R environment. The file is called the data frame as attacks.
attacks <- read_csv("data/eventlog.csv")3.3 Examining the data structure
It is always a good practice to examine the imported data frame before further analysis is performed.
For example, kable() can be used to review the structure of the imported data frame.
kable(head(attacks))| timestamp | source_country | tz |
|---|---|---|
| 2015-03-12 15:59:16 | CN | Asia/Shanghai |
| 2015-03-12 16:00:48 | FR | Europe/Paris |
| 2015-03-12 16:02:26 | CN | Asia/Shanghai |
| 2015-03-12 16:02:38 | US | America/Chicago |
| 2015-03-12 16:03:22 | CN | Asia/Shanghai |
| 2015-03-12 16:03:45 | CN | Asia/Shanghai |
There are three columns, namely timestamp, source_country and tz.
- timestamp field stores date-time values in POSIXct format.
- source_country field stores the source of the attack. It is in ISO 3166-1 alpha-2 country code.
- tz field stores time zone of the source IP address.
3.4 Data Preparation
Step 1: Deriving weekday and hour of day fields
Before we can plot the calender heatmap, two new fields namely wkday and hour need to be derived. In this step, I will write a function to perform the task.
make_hr_wkday <- function(ts, sc, tz) {
real_times <- ymd_hms(ts,
tz = tz[1],
quiet = TRUE)
dt <- data.table(source_country = sc,
wkday = weekdays(real_times),
hour = hour(real_times))
return(dt)
}Note: ymd_hms() and hour() are from lubridate package and weekdays() is a base R function.
Step 2: Deriving the attacks tibble data frame
wkday_levels <- c('Saturday', 'Friday',
'Thursday', 'Wednesday',
'Tuesday', 'Monday',
'Sunday')
attacks <- attacks %>%
group_by(tz) %>%
do(make_hr_wkday(.$timestamp,
.$source_country,
.$tz)) %>%
ungroup() %>%
mutate(wkday = factor(
wkday, levels = wkday_levels),
hour = factor(
hour, levels = 0:23))Note: Beside extracting the necessary data into attacks data frame, mutate() of dplyr package is used to convert wkday and hour fields into factor so they’ll be ordered when plotting
Table below shows the tidy tibble table after processing.
kable(head(attacks))| tz | source_country | wkday | hour |
|---|---|---|---|
| Africa/Cairo | BG | Saturday | 20 |
| Africa/Cairo | TW | Sunday | 6 |
| Africa/Cairo | TW | Sunday | 8 |
| Africa/Cairo | CN | Sunday | 11 |
| Africa/Cairo | US | Sunday | 15 |
| Africa/Cairo | CA | Monday | 11 |

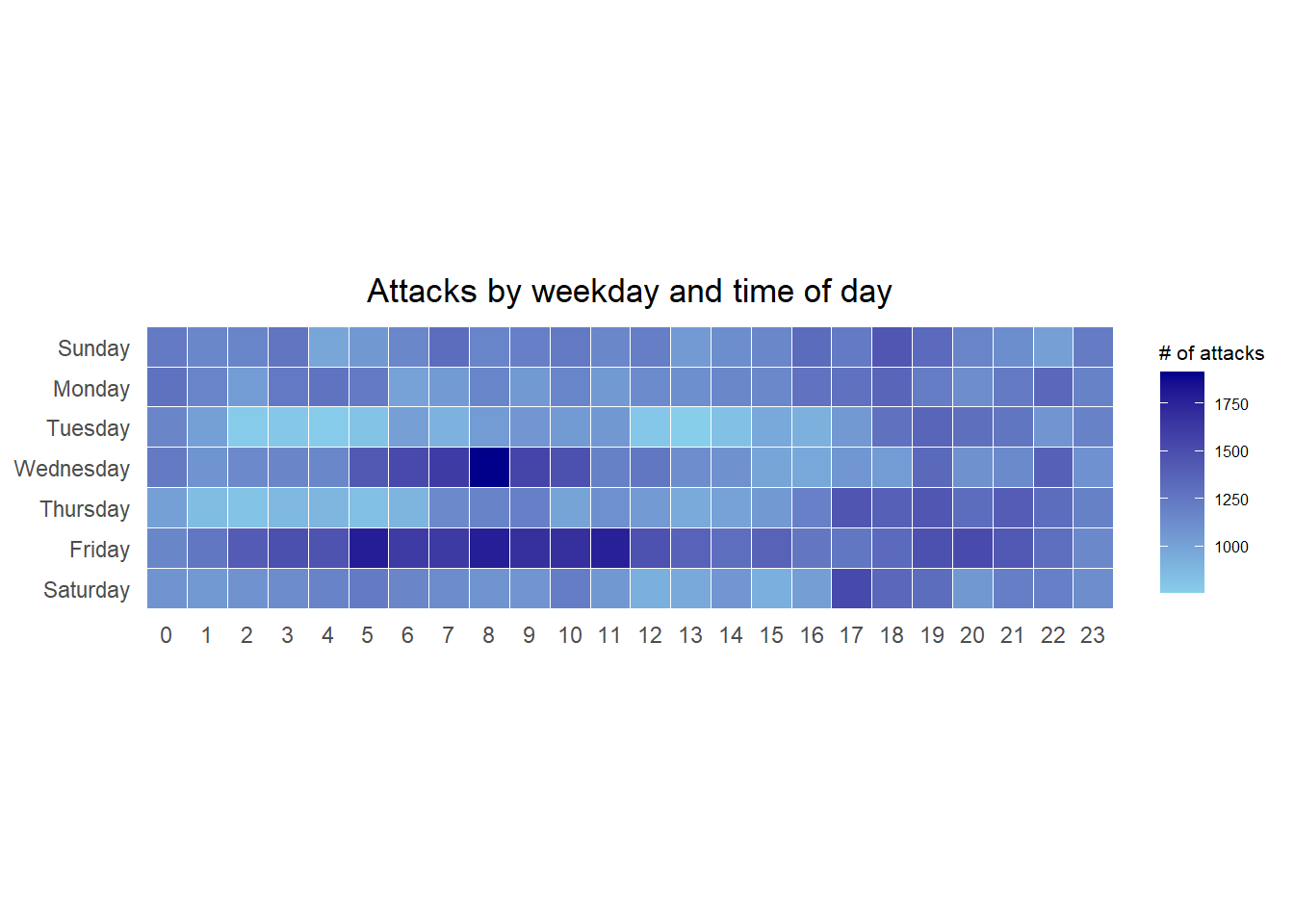

3.5 Building the Calendar Heatmaps
grouped <- attacks %>%
count(wkday, hour) %>%
ungroup() %>%
na.omit()
ggplot(grouped,
aes(hour,
wkday,
fill = n)) +
geom_tile(color = "white",
size = 0.1) +
theme_tufte(base_family = "Helvetica") +
coord_equal() +
scale_fill_gradient(name = "# of attacks",
low = "sky blue",
high = "dark blue") +
labs(x = NULL,
y = NULL,
title = "Attacks by weekday and time of day") +
theme(axis.ticks = element_blank(),
plot.title = element_text(hjust = 0.5),
legend.title = element_text(size = 8),
legend.text = element_text(size = 6) )
Things learnt from the code chunk: - a tibble data table called grouped is derived by aggregating the attack by wkday and hour fields. - a new field called n is derived by using group_by() and count() functions. - na.omit() is used to exclude missing value. - geom_tile() is used to plot tiles (grids) at each x and y position. color and size arguments are used to specify the border color and line size of the tiles. - theme_tufte() of ggthemes package is used to remove unnecessary chart junk. To learn which visual components of default ggplot2 have been excluded, you are encouraged to comment out this line to examine the default plot. - coord_equal() is used to ensure the plot will have an aspect ratio of 1:1. - scale_fill_gradient() function is used to creates a two colour gradient (low-high).
Then we can simply group the count by hour and wkday and plot it, since we know that we have values for every combination there’s no need to further preprocess the data.
3.6 Building Multiple Calendar Heatmaps
The problem that I am trying to tackle is to build multiple heatmaps for the top four countries with the highest number of attacks.
3.7 Plotting Multiple Calendar Heatmaps
Step 1: Deriving attack by country object
In order to identify the top 4 countries with the highest number of attacks, the followings steps should be considered:
- count the number of attacks by country,
- calculate the percent of attacks by country, and
- save the results in a tibble data frame.
attacks_by_country <- count(
attacks, source_country) %>%
mutate(percent = percent(n/sum(n))) %>%
arrange(desc(n))Step 2: Preparing the tidy data frame
In this step, I will extract the attack records of the top 4 countries from attacks data frame and save the data in a new tibble data frame (i.e. top4_attacks).
top4 <- attacks_by_country$source_country[1:4]
top4_attacks <- attacks %>%
filter(source_country %in% top4) %>%
count(source_country, wkday, hour) %>%
ungroup() %>%
mutate(source_country = factor(
source_country, levels = top4)) %>%
na.omit()3.8 Plotting Multiple Calendar Heatmaps

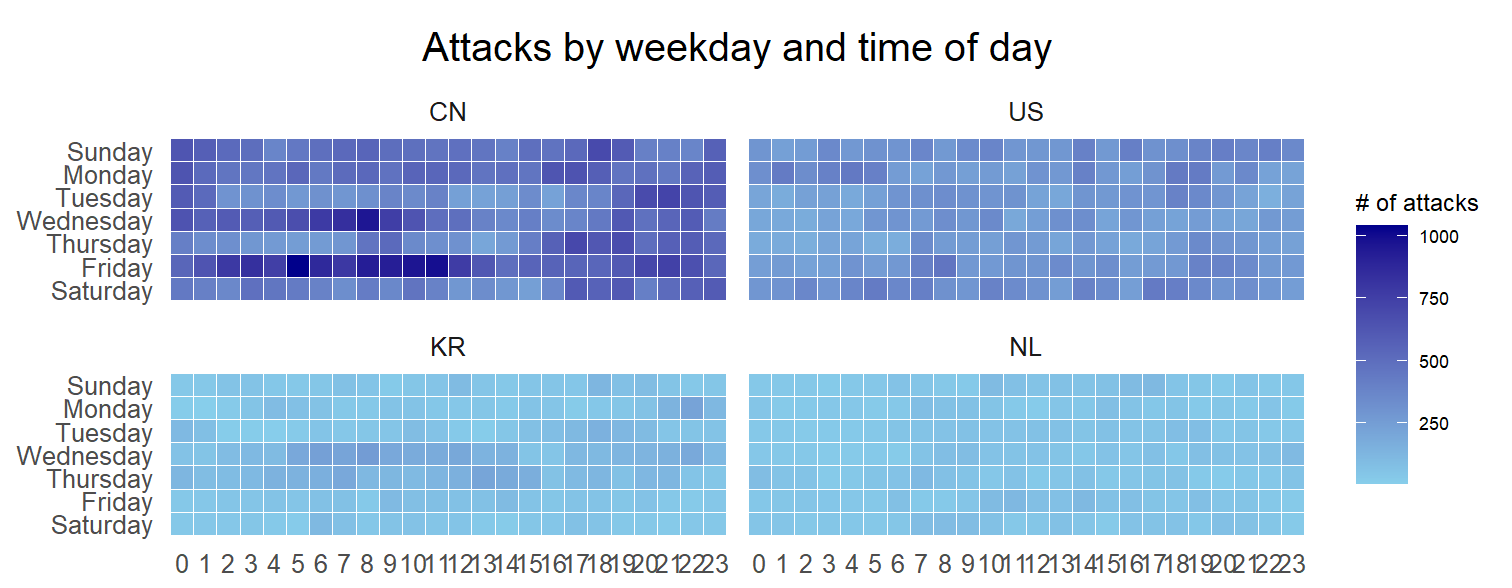

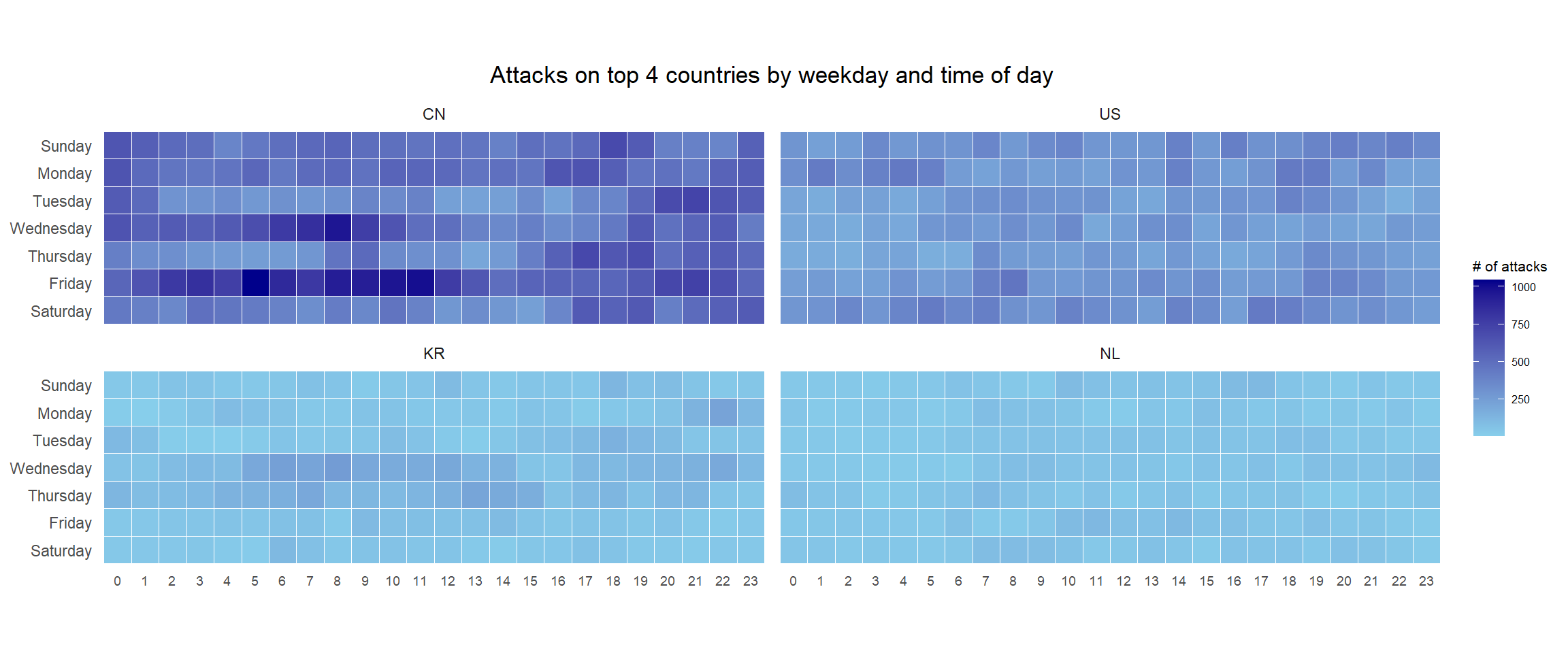

Step 3: I will plot the Multiple Calender Heatmap by using ggplot2 package.
ggplot(top4_attacks,
aes(hour,
wkday,
fill = n)) +
geom_tile(color = "white",
size = 0.1) +
theme_tufte(base_family = "Helvetica") +
coord_equal() +
scale_fill_gradient(name = "# of attacks",
low = "sky blue",
high = "dark blue") +
facet_wrap(~source_country, ncol = 2) +
labs(x = NULL, y = NULL,
title = "Attacks on top 4 countries by weekday and time of day") +
theme(axis.ticks = element_blank(),
axis.text.x = element_text(size = 7),
plot.title = element_text(hjust = 0.5),
legend.title = element_text(size = 8),
legend.text = element_text(size = 6) )
4 Cycle Plot
In this section, a cycle plot showing the time-series patterns and trend of visitor arrivals from Vietnam programmatically by using ggplot2 functions will be done.
4.1 Data Preparation
4.1.1 Step 1: Data Import
For the purpose of this exercise, arrivals_by_air.xlsx will be used.
The code chunk below imports arrivals_by_air.xlsx by using read_excel() of readxl package and save it as a tibble data frame called air.
air <- read_excel("data/arrivals_by_air.xlsx")4.1.2 Step 2: Deriving month and year fields
Next, two new fields called month and year are derived from Month-Year field.
air$month <- factor(month(air$`Month-Year`),
levels=1:12,
labels=month.abb,
ordered=TRUE)
air$year <- year(ymd(air$`Month-Year`))4.1.3 Step 3: Extracting the target country
Next, the code chunk below is to extract data for the target country (i.e. Vietnam)
Vietnam <- air %>%
select(`Vietnam`,
month,
year) %>%
filter(year >= 2010)4.1.4 Step 4: Computing year average arrivals by month
The code chunk below uses group_by() and summarise() of dplyr to compute year average arrivals by month.
hline.data <- Vietnam %>%
group_by(month) %>%
summarise(avgvalue = mean(`Vietnam`))4.2 Step 5: Plotting the cycle plot

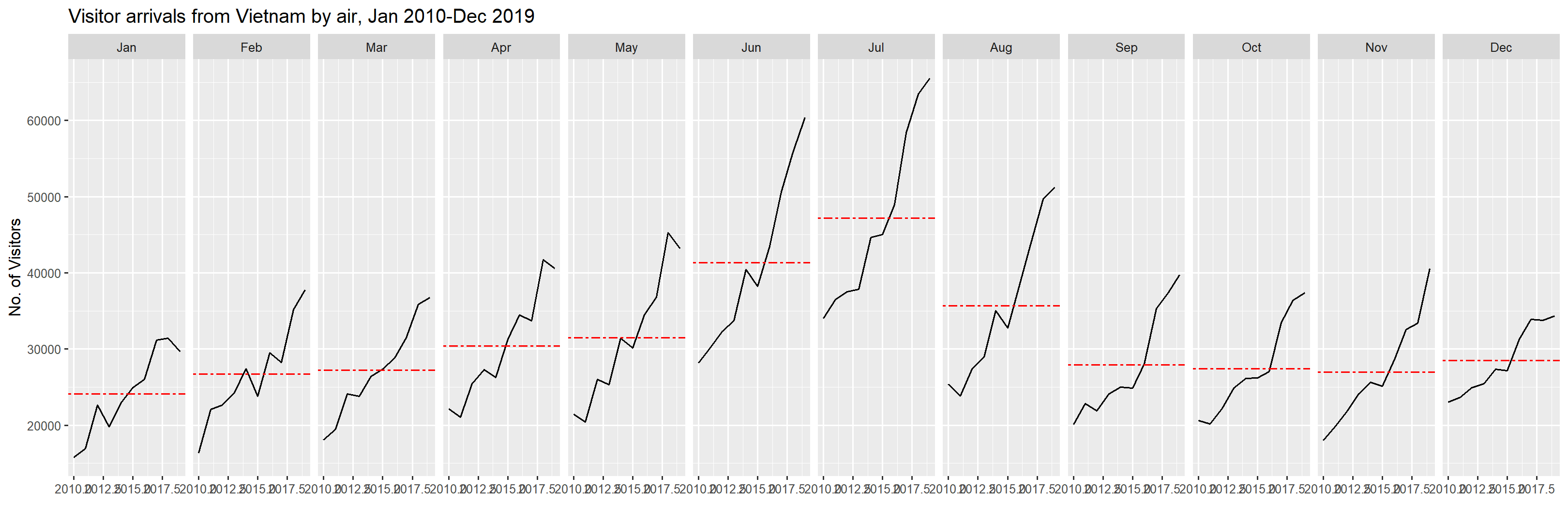

ggplot() +
geom_line(data=Vietnam,
aes(x=year,
y=`Vietnam`,
group=month),
colour="black") +
geom_hline(aes(yintercept=avgvalue),
data=hline.data,
linetype=6,
colour="red",
linewidth=0.5) +
facet_grid(~month) +
labs(axis.text.x = element_blank(),
title = "Visitor arrivals from Vietnam by air, Jan 2010-Dec 2019") +
xlab("") +
ylab("No. of Visitors")5 Plotting Slopegraph
CGPfunctions needs to be installed and loaded onto R environment. The newggslopegraph function would be the main focus of this section.
pacman::p_load(CGPfunctions)5.0.1 Step 1: Data Import
rice <- read_csv("data/rice.csv")5.0.2 Step 2: Slopegraph plotting
A basic slopegraph can be plotted like this below:
rice %>%
mutate(Year = factor(Year)) %>%
filter(Year %in% c(1961, 1980)) %>%
newggslopegraph(Times = Year,
Measurement = Yield,
Grouping = Country,
Title = "Rice Yield of Top 11 Asian Counties",
SubTitle = "1961-1980",
Caption = "Prepared by: Li Ziyi")6 Plotting Horizon Plot
ggHoriPlot is the package to be used for horizon plot mainly.
pacman::p_load(ggHoriPlot)6.0.1 Step 1: Data Import
For the purpose of this exercise, Average Retail Prices Of Selected Consumer Items will be used.
averp <- read_csv("data/AVERP.csv") %>%
mutate(`Date` = dmy(`Date`))Take note that dmy() from lubridate package allows us to palse the Date field into appropriate Date data type in R.

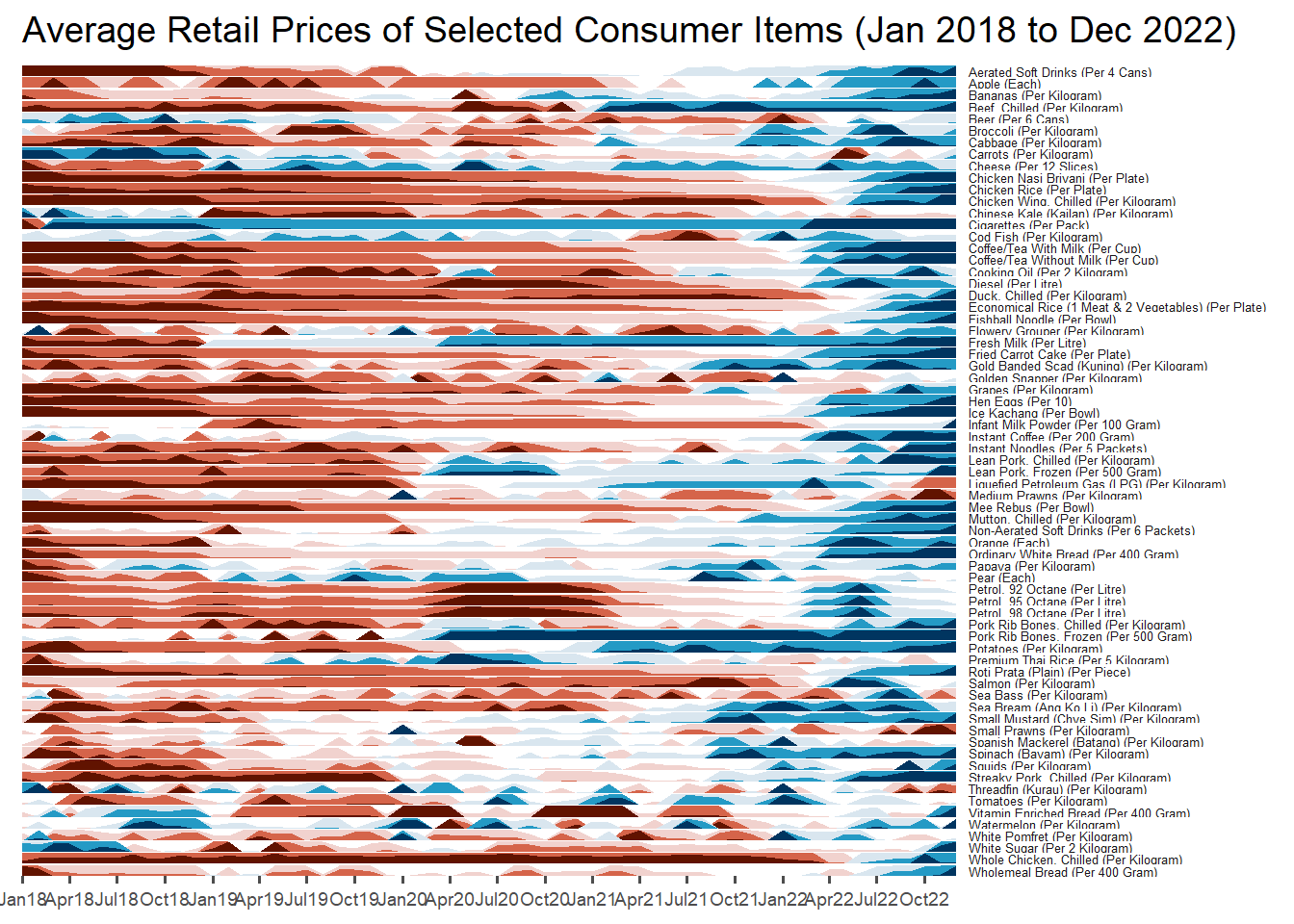

6.0.2 Step 2: Plotting the horizon graph
averp %>%
filter(Date >= "2018-01-01") %>%
ggplot() +
geom_horizon(aes(x = Date, y=Values),
origin = "midpoint",
horizonscale = 6)+
facet_grid(`Consumer Items`~.) +
theme_few() +
scale_fill_hcl(palette = 'RdBu') +
theme(panel.spacing.y=unit(0, "lines"), strip.text.y = element_text(
size = 5, angle = 0, hjust = 0),
legend.position = 'none',
axis.text.y = element_blank(),
axis.text.x = element_text(size=7),
axis.title.y = element_blank(),
axis.title.x = element_blank(),
axis.ticks.y = element_blank(),
panel.border = element_blank()
) +
scale_x_date(expand=c(0,0), date_breaks = "3 month", date_labels = "%b%y") +
ggtitle('Average Retail Prices of Selected Consumer Items (Jan 2018 to Dec 2022)')
